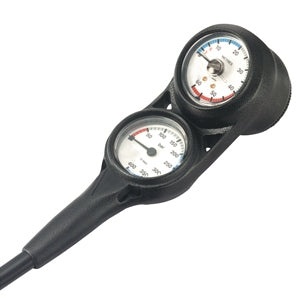

SEA&SEA MINI TRIPLE GAUGE CONSOLE

MINI HIGH-PRESSURE GAUGE, DEPTH GAUGE AND COMPASS WITH BOOT AND 32" HOSE.

PRESSURE GAUGE

• Graduated 400 Bar full scale.
• Luminous easy to read dial design.
• Red zone from 0 to 50 Bar.
• 10 Bar ingrements shown across the scale.

DEPTH GAUGE

• Phosphore bronze 'C' Bourdon tube depth gauge.
• Rack and Pinion movement for smooth and precise operation.
• Silicone oil filled depth gauge with polycarbonate upper.
• Temperature compensating rubber lower.
• Highly accurate in a range between 0 and 50oc.
• Easy to reset maximum depth red indicator.

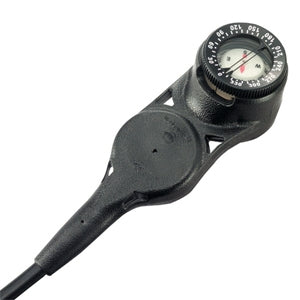

 COMPASS

• Oil filled compass with top or side view.
• Very fast response, -2 Magnets.
• Silk screen printed numbers on bezel.
• Features a plastic boot with fixing loop.
